Overview

Unlike Alternative Test Cables for Defense Aircraft

Gore believes that microwave/RF test assemblies are among the top mechanical and electrical considerations aircraft operators, maintainers, engineers and manufacturers must make. That’s because a study has found that over 75% of microwave/RF cable assemblies worldwide are frequently replaced due to damage during installation, damage during use, poor quality assemblies, connector termination and outdoor environmental conditions.

2020 Military & Aerospace Electronics Innovators Awards Gold Honoree

GORE® PHASEFLEX® Microwave/RF Test Assemblies has been recognized among the 2020 Military & Aerospace Electronics Innovators Awards. Learn more

Instead of replacing your microwave/RF assemblies multiple times per year, choose the right microwave/RF test assembly that will lower your cost, time and risk. Though many assemblies share similarities in appearance and specifications, GORE PHASEFLEX Microwave/RF Test Assemblies are the only internally ruggedized, flexible test assemblies that:

  • Guarantee consistently high performance and long service life in harsh aerospace testing environments
  • Have a construction that’s durable enough to resist crushing, kinking and twisting, while also preventing potential damage from exceeding a cable’s minimum bend radius
  • Maintain repeatable, accurate measurements and stable electrical performance up to 110 GHz
  • Withstand frequent connecting and disconnecting
  • Perform reliably after extensive flexing, with some constructions exceeding 100,000 flex cycles
  • Provide excellent phase and amplitude stability with flexure and temperature
  • Reduce aircraft downtime by increasing testing throughput and mission capable rates
  • Lower costs and reduce risk for R&D and System Integration Laboratory (SIL) by enhancing confidence in data integrity and reducing re-testing and replacing
Soldiers Relying On GORE® PHASEFLEX® Microwave/RF Test Assemblies

Applications

Reliable Performance across Various Defense Applications

With proven performance that is prequalified and tested before hitting the market, GORE PHASEFLEX Microwave/RF Test Assemblies provide trustworthy results in a host of defense applications, including:

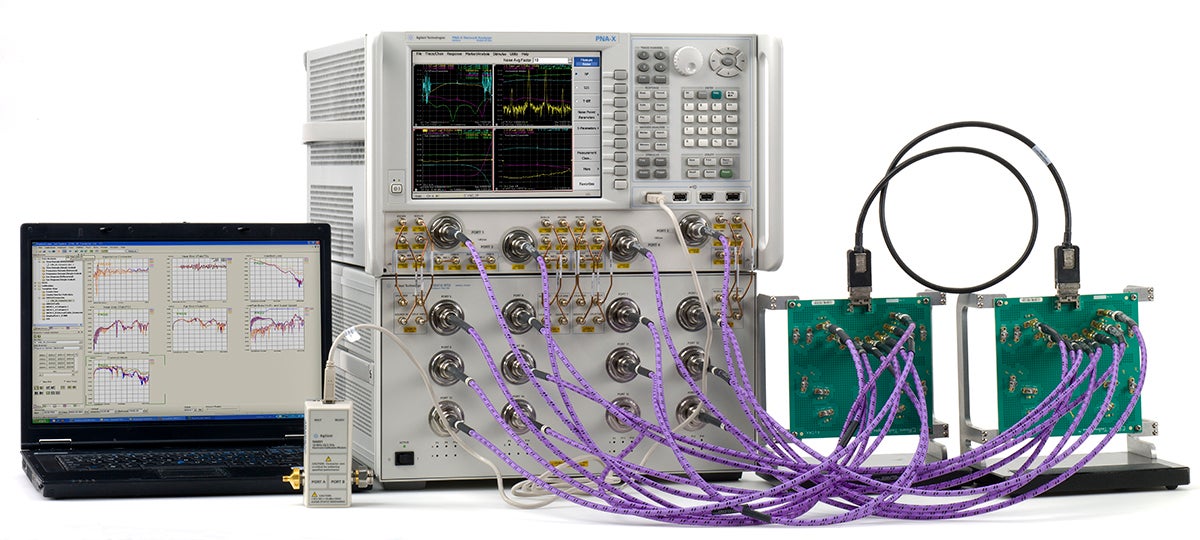

Gore’s Test Assemblies on Keysight Technology test equipment

Courtesy, Keysight Technologies, Inc.

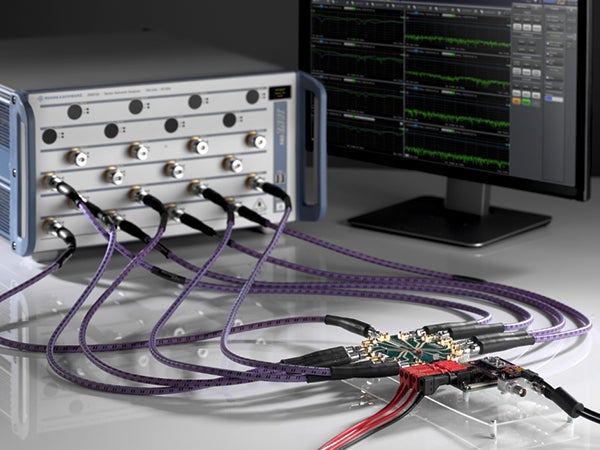

Application On R&S®ZNBT Vector Network Analyzer

Application on R&S®ZNBT Vector Network Analyzer.
Courtesy, Rohde & Schwarz GmbH & Co.

  • Antenna ranges
  • Test rack systems
  • Bench-top testing
  • Portable analyzers
  • Nearfield scanners
  • Anechoic chambers
  • High-speed digital test
  • Scalar network analyzers
  • Automated test equipment
  • 5G test and interconnection
  • Vector network analyzers (VNAs)
  • Electromagnetic compliance testing
  • High throughput RF production testing
  • Environmental and vacuum test chambers
  • Wireless telecommunication module testing
  • And more.

Online Tools

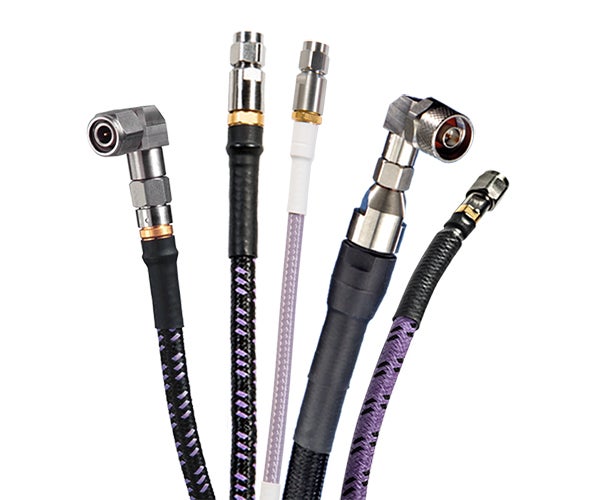

Construction of GORE PHASEFLEX Microwave/RF Test Assemblies

More Information

Learn More about GORE PHASEFLEX Microwave/RF Test Assemblies or Order Now

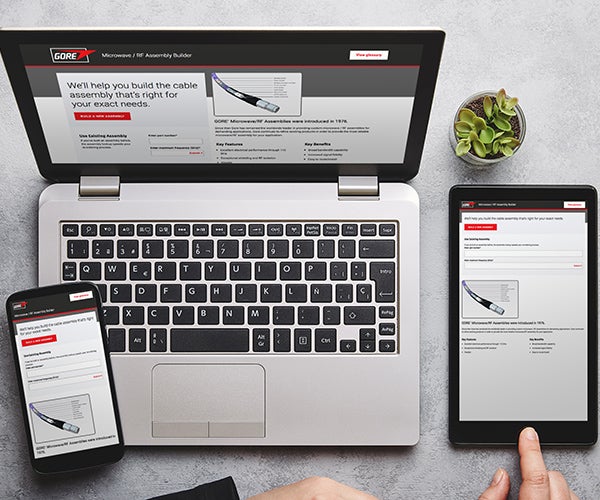

For more information or to discuss the specific needs for your defense application, contact a Gore representative today. We also invite you to review our products’ data sheet and visit our online cable builder, where you can design a cable that’s right for your applications and get a quote. Calculate insertion loss, VSWR and other parameters with our RF Calculator. Please contact one of our authorized distributors for in-stock availability.
